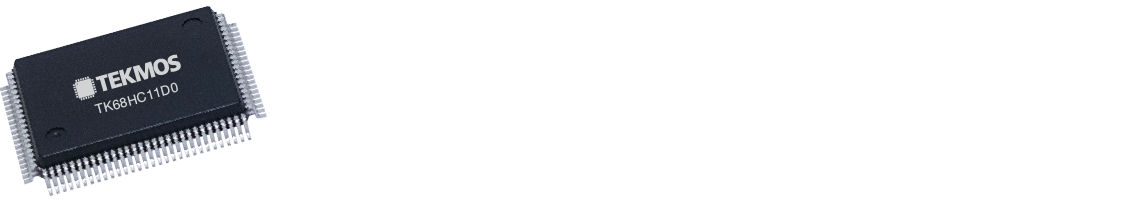

TK68HC11D0 Microcontroller

General Description

The TK68HC711D3 contains highly sophisticated on-chip peripheral functions. This high-speed, low-power programmable read-only memory (PROM) MCU has a nominal bus speed of 3 MHz. The fully static design allows operations at frequencies down to dc.

The TK68HC11D3 and TK68HC11D0 are read-only memory (ROM) based high-performance microcontrollers (MCU) based on the TK68HC11E9 design. The TK68L11D0 is an extended-voltage version of the TK68HC11D0 that can operate in applications that require supply voltages as low as 3.0 V.

Features

Expanded 16-bit timer system with four-stage programmable prescaler
Non-return-to-zero (NRZ) serial communications interface (SCI)
Power-saving stop and wait modes
64 Kbytes memory addressability
Multiplexed address/data bus
Serial peripheral interface (SPI)
4 Kbytes of one-time programmable read-only memory (OTPROM)
8-bit pulse accumulator circuit
192 bytes of static random-access memory (RAM) (all saved during standby)
Real-time interrupt (RTI) circuit
Computer operating properly (COP) watchdog system
Available in these packages:
- 40-pin plastic dual in-line package (DIP)
- 44-pin plastic leaded chip carrier (PLCC)
- 44-pin plastic quad flat pack (QFP)

Request for Product Information

To request information on our TK68HC11D0 Microcontroller click this button:

Request Information

Documentation

The data sheet is available here: TK68HC11D

Product Change Notice Form: PCN 17002

Note: the information in the pdf file pertains to all the devices with the exceptions noted in Appendix A TK68HC11D3 and TK68HC11D0 and Appendix B TK68L11D0.
