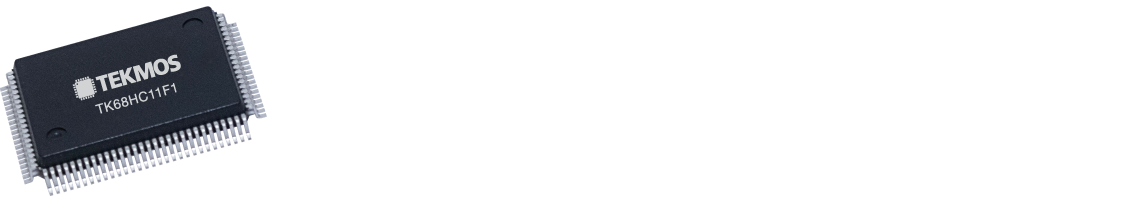

TK68HC11F1 Microcontroller



General Description

The 68HC11F1 is a high-performance member of the 68HC11 family of microcontroller units (MCUs). High-speed expanded systems required the development of this chip with its extra input/output (I/O) ports, an increase in static RAM (one Kbyte), internal chip-select functions, and a non-multiplexed bus which reduces the need for external interface logic. The timer, serial I/O, and analog-to-digital (A/ D) converter enable functions similar to those found in the 68HC11E9.



Features

Features of the E-series devices include:

  • 68HC11 CPU
  • 512 Bytes of On-Chip Electrically Erasable Programmable ROM (EEPROM) with Block Protect
  • 1024 Bytes of On-Chip RAM (All Saved During Standby)
  • Enhanced 16-Bit Timer System:
    • 3 Input Capture (IC) Functions
    • 4 Output Compare (OC) Functions
    • 4th IC or 5th OC (Software Selectable)
  • On-Board Chip-Selects with Clock Stretching
  • Real-Time Interrupt Circuit
  • 8-Bit Pulse Accumulator
  • Synchronous Serial Peripheral Interface (SPI)
  • Asynchronous Non-return to Zero (NRZ) Serial Communication Interface (SCI)
  • Power saving STOP and WAIT Modes
  • Eight-Channel 8-Bit A/D Converter (68HC11F1 only)
  • Computer Operating Properly (COP) Watchdog System and Clock Monitor
  • Bus Speeds of up to 6 MHz for the 68HC11FC0 and up to 5 MHz for the 68HC11F1
  • 68-Pin PLCC

Request for Product Information

To request information on our TK68HC11F1 Microcontroller click this button:



Minimum Order Quantity

We will continue to sell the TK68HC711F1 parts with a MOQ of 100 units as long as we have inventory in stock. Once that inventory is gone, then minimum order quantities will increase to 3000 parts per order.



Programming

Tekmos Device Programmer

The data sheet is available here: Tekmos Device Programmer TK68HC7xx
